- Model Name

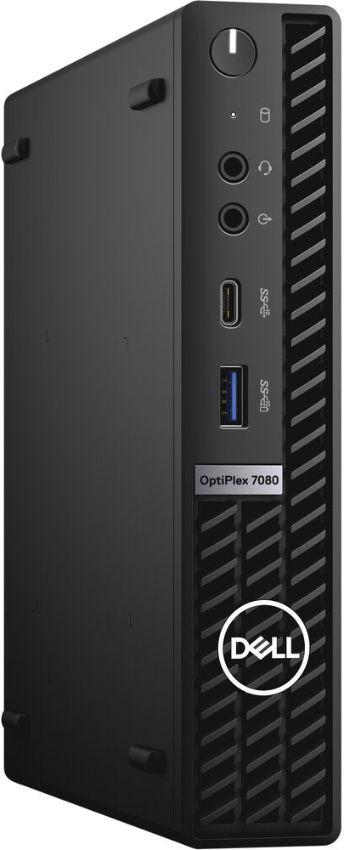

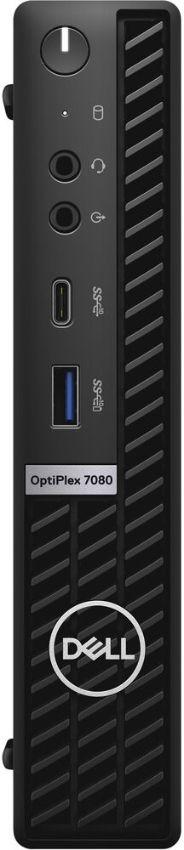

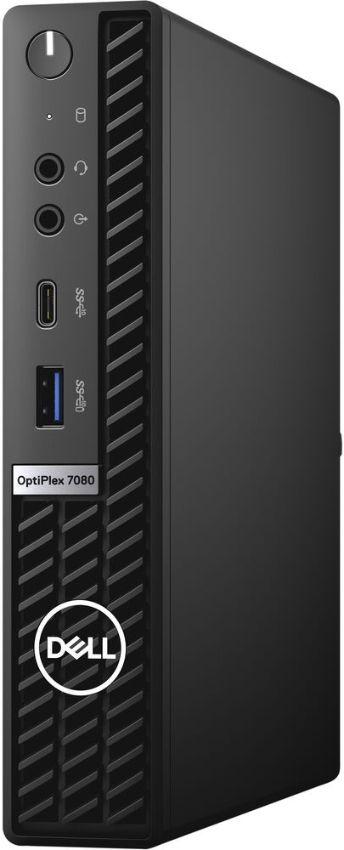

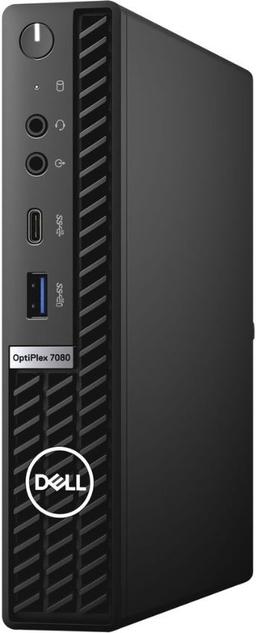

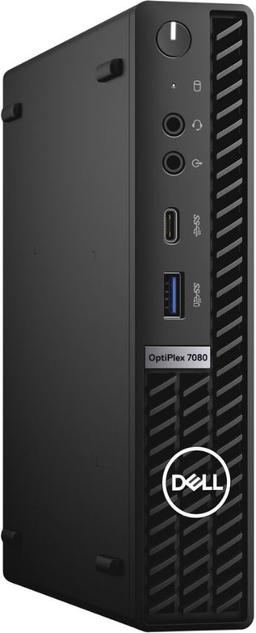

- Dell OptiPlex 7080 Desktop MFF
- Dimensions
- Height 182.00 mm (7.16 in.) x Width 36.00 mm (1.42 in.) x Depth 178.56 mm (7.03 in.)
- Weight (maximum)
- 1.28 kg (2.82 lb) (For 35 W) | 1.29 kg (2.85 lb) (For 65 W) | 1.38 kg (3.05 lb) (For discrete graphics)
- Operating system
- Windows OS
- #4
- Intel® Core™ i5-10600 Processor (3.3GHz Up to 4.8GHz Max Frequency) 12MB Intel Smart Cache, 6 Cores, 12 Threads | Intel® UHD Graphics 630
- #5
- Intel® Core™i3-10100T Processor (3.0GHz Up to 3.8GHz Max Frequency) 6MB Intel Smart Cache, 4 Cores, 8 Threads | Intel® UHD Graphics 630
- #6
- Intel® Core™ i5-10600T Processor (2.4GHz Up to 4.0GHz Max Frequency) 12 MB Intel® Smart Cache, 6-Cores 12 Threads | Intel® UHD Graphics 630
- Memory
- 2GB RAM / 4GB RAM / 6GB RAM / 8GB RAM / 12GB RAM / 16GB RAM / 32GB RAM / 64GB RAM / 128GB RAM
- Storage
- 120GB SSD / 120GB HDD / 128GB SSD / 240GB SSD / 240GB HDD / 256GB SSD / 500GB HDD / 512GB SSD / 628GB (500GB HDD + 128GB SSD) / 756GB (500GB HDD + 256GB SSD) / 1TB SSD / 1TB HDD / 1.024TB (512GB SSD + 512GB SSD) / 1.1TB (128GB SSD + 1TB SSD) / 1.1TB (128GB SSD + 1TB HDD) / 1.2TB (1TB SSD + 256GB SSD) / 1.2TB (1TB HDD + 256GB SSD) / 1.5TB (1TB SSD + 512GB SSD) / 1.5TB (1TB HDD + 512GB SSD) / 2TB SSD / 2TB HDD / 2TB (1TB SSD + 1TB HDD) / 2.1TB (2TB SSD + 128GB SSD) / 2.1TB (2TB HDD + 128GB SSD) / 2.2TB (256GB SSD + 2TB SSD) / 2.2TB (256GB SSD + 2TB HDD) / 2.5TB (2TB SSD + 512GB SSD) / 2.5TB (2TB HDD + 512GB SSD) / 3TB SSD / 3TB HDD / 3TB (2TB SSD + 1TB HDD) / 3TB (2TB HDD + 1TB HDD) / 3TB (2TB HDD + 1TB SSD) / 4TB SSD / 4TB HDD / 4TB (2TB SSD + 2TB HDD) / 6TB SSD (3TB SSD + 3TB HDD) / 6TB SSD / 6TB HDD / 6TB (4TB SSD + 2TB HDD) / 6TB (4TB HDD + 2TB SSD) / 8TB SSD / 8TB HDD / 8TB (4TB SSD + 4TB HDD) / 8TB (6TB SSD + 2TB HDD) / 8TB (6TB HDD + 2TB SSD)
- External Ports

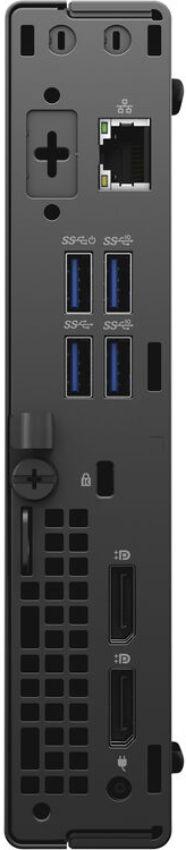

- Network; 1x RJ-45 port 10/100/1000 Mbps (rear) | USB (Without discrete graphics); 1x USB 3.2 Gen 2 Type-A port with PowerShare (front), 1x USB 3.2 Gen 2 Type-C port (front), 1x USB 3.2 Gen 1 Type-A port (rear), 2x USB 3.2 Gen 2 Type-A ports (rear), 1x USB 3.2 Gen 1 Type-A port with Smart Power on (rear) | USB (With discrete graphics); 1x USB 3.2 Gen 2 Type-A port with PowerShare (front), 1x USB 3.2 Gen 2 Type-C port (front), 2x USB 3.2 Gen 2 Type-A ports (rear), 1x USB 3.2 Gen 1 Type-A port with Smart Power on (rear) | Audio; 1x Universal Audio Jack (front), 1x Line-out port (retaskable Line-in) (front) | Video; 2x DisplayPort 1.4 port (rear), 1x VGA Port/DisplayPort 1.4 Port/HDMI 2.0b Port/ USB 3.2 Gen 2 Type-C Port with Alt-mode (optional) (Not supported with Discrete graphics), 1x Serial RS232 (optional) (Not supported with Discrete graphics), 1x Serial/PS2 port (optional) (Not supported with Discrete graphics) | Memory card reader; Not supported | Power port; 4.5 mm DC barrel-type, 7.4 mm DC barrel-type for 65 W CPU and discrete graphics | Security; 1x kensington security-cable slot | Antenna; 2x SMA connectors (optional)
- Internal Slots
- SATA; One SATA slots for 2.5-inch Hard-disk drive | M.2; One M.2 2230 slot for WiFi/Bluetooth card, One M.2 2230/2280 slot for PCIe solid-state drive/Intel Optane, One M.2 2280 slot for PCIe solid-state drive/Intel Optane, One SATA slots for 2.5-inch hard-disk drive (for 35 W and 65 W only), One half-height Gen3 PCIe x8 slot (discrete graphics)
- Ethernet Model Number
- Intel i219-LM | Transfer rate; 10/100/1000 Mbps
- #1
- Model Number; Qualcomm QCA9377 | Transfer rate; Up to 867 Mbps | Frequency bands supported; 2.4 GHz/5 GHz | Wireless standards; Wi-Fi 802.11 a/b/g, Wi-Fi 4 (WiFi 802.11n), Wi-Fi 5 (WiFi 802.11ac) | Encryption; 64-bit and 128-bit WEP, 128-bit AES-CCMP, TKIP | Bluetooth; 5.0
- #2
- Model Number; Qualcomm QCA61x4A | Transfer rate; Up to 867 Mbps | Frequency bands supported; 2.4 GHz/5 GHz | Wireless standards; 802.11ac | Encryption; 64-bit and 128-bit WEP, 128-bit AES-CCMP, TKIP | Bluetooth; 5.0
- #3
- Model Number; Intel Wi-Fi 6 AX201 | Transfer rate; Up to 2.4 Gbps | Frequency bands supported; 2.4 GHz/5 GHz | Wireless standards; 802.11ax (Wi-Fi 6) | Encryption; 64-bit and 128-bit WEP, 128-bit AES-CCMP, TKIP | Bluetooth; 5.0
- Audio Type
- 4 Channel High Definition Audio | Controller; Realtek ALC3246 | Stereo conversion; 24-bit DAC (Digital-to-Analog) and ADC (Analog-to-Digital) | Internal interface; High definition audio interface | External interface; Universal Audio Jack, Line-out | Speakers; One | Internal speaker amplifier; Integrated in ALC3246 (Class-D 2 W) | External volume controls; Keyboard shortcut controls | Speaker output average; 2 W | Speaker output peak; 2.5 W | Subwoofer output; Not supported | Microphone; Not supported
- Data Security
- SafeGuard and Response, powered by VMware Carbon Black and Secureworks; Supported | Next Generation anti-virus (NGAV); Supported | Endpoint Detection and Response (EDR); Supported | Threat Detection and Response (TDR); Supported | Managed Endpoint Detection and Response; Supported | Incident Management Retainer; Supported | Emergency Incident Response; Supported | SafeData; Supported
